Project background

Shuyang ITAD household waste treatment center is a la÷rge environment facility with intensive and high integrated ★techniques. To meet the requirement to urban household w↕aste modern integrated treatment and the treatment center scientific management₽, in the processing design, philosophy and technolo↕gy about multi-points processing control and automated production line system contro​l have been widely used. The treatment center central control≤ system is the central nervous system of the plant. It no←t only controls and monitors all the equipment running within the plant, but als↓o automatically collects and stores large amount of processing data for analysis and pro&cess. The treatment center central control system uses industrial÷ Ethernet, PLC workstations and many process control sensors and other digital informationl♠ized technologies, to accomplish the optimized production process control, reasγonable production scheduling and reliable product quality.

Period of the project

July, 2008 – March, 2009

System structure

Central control system

1 suit of engineer station (SIEMENS STEP7 implemented), 5 suits of rem®ote operator stations (kingview implemented), 1 suit of data server and 1  suit of radio control console.

Network system

10 suits of MOXA industrial fiber switches and 2 suit≈s of MOXA industrial-level switches

Local control system

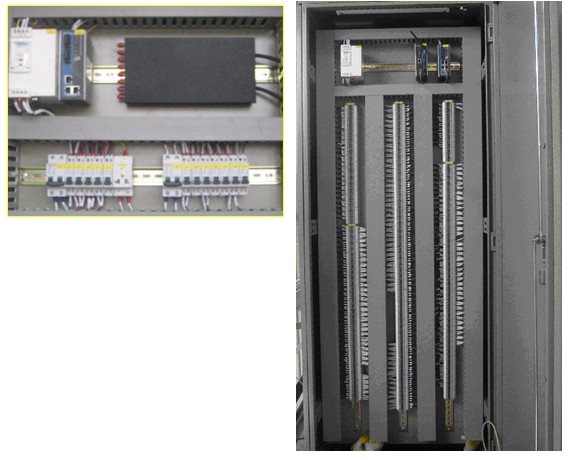

6 suits of PLC control cabinet (SIEMENS 300 series PLC), 2 suits of PLC consoles (SIφEMES 200 series PLC), 12 suits of local operator stations '(kingview software) and 4 suits of local four - wire system instrument config♣ured power cabinet (Schneider low-voltage power distributio n product)

Main screen control system

8 LCD matching monitor, 1 video controller, 1 video matrix, 1 VGA matrix and 1sui↕t of LED screen

Video monitoring system

Plant monitoring system (35 monitoring points) and safety monitoring system (1→0 monitoring points), Haikang hard disk recorder is used

Audio broadcast system

Production region (12 circuits) and green area outside of the plant (So€uth region and north region)

Local bridge and pipe network

Weak electricity bridge and video broadcast branch pipes

Traffic system

2 suits of traffic light and road brakes respectively

Network topology
